Custom Elume LED Light Panel.
Our Custom Elume LED Light Panel Options
Our ultra thin, eLume LED Light Panels are designed to output a perfectly even, bright, edge to edge white or RGB illumination across the surface of the panel.
Available in Warm White, Neutral White, Daylight White or RGB our edge lit optical acrylic sheets are custom manufactured specific to the dimensions and/or shapes that your project requires ensuring the most vibrant and uniform output optimized for backlighting your translucent material.
We invite you to contact us to discuss your project's LED Light Panel requirements with one of our knowledgeable design associates.Download LED Light Panel Specification Guide
Elume LED Light Panel - Attributes
Versatility

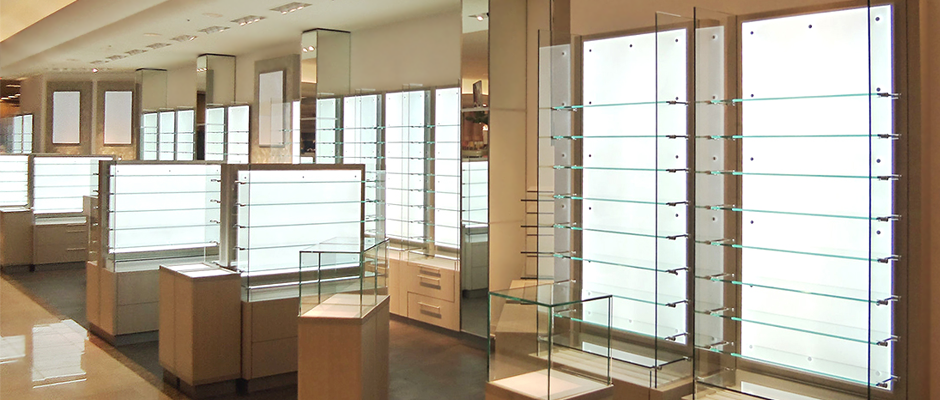

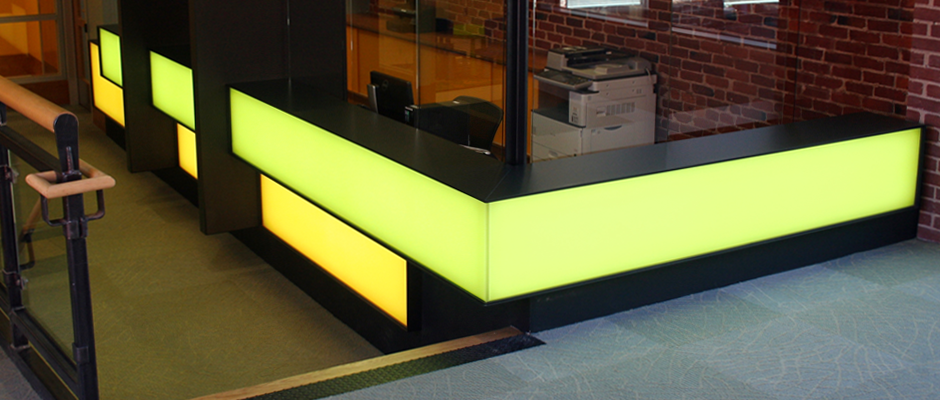

Illuminate any translucent material to produce bright, uniform backlit and vibrant, sustainable architectural features or illuminated graphics and signage.
Customizability
Every eLume LED Light Panel is custom manufactured to the dimensions/shape, light level and kelvin temperature or RGB output to each client's specific project's requirements.
Illumination & Dimmability
With multiple fully dimmable output level options and the ability to embedd LEDs along 1, 2, 3 or all 4 edges of the acrylic, our panels are fabricated to the ideal light level required for your backlit application.
Precision Manufacturing
Meticulous fabrication process coupled with stringent quality control measures and UL safety certification ensures your eLume LED light panel arrives as expected and outperforms your expectations throughout the LED panel's longevity.
Resiliency
With their solid-state circuitry LEDs embedded in a light distribution matrix engraved, optical acrylic sheet, our eLume LED panels are water resistant, impervious to vibration and impact resilient.
Design Assistance
From concept to implementation, architects to end users, our knowledgeable design consultants and technicians offer assistance throughout the project to meet your functional requirements and achieve your aesthetic lighting objective.
Elume LED Light Panel - Light Output Colour Options [Custom Kelvins Available]
Elume LED Light Panel - LED Embedded Side's Options
LEDs Embedded Along 1, 2 or 4 Edges
To ensure the ideal output specifications for your project each LED light Panel is custom fabricated with the option of embedding LEDs along 1 edge, 2 opposing edges or along all 4 edges.
Customized Light Guide Matrix
Each LED Light Panel's light distribution grid matrix is optimized by Elumanation's proprietary algorithm to ensure maximum uniformity across each light panel's surface.

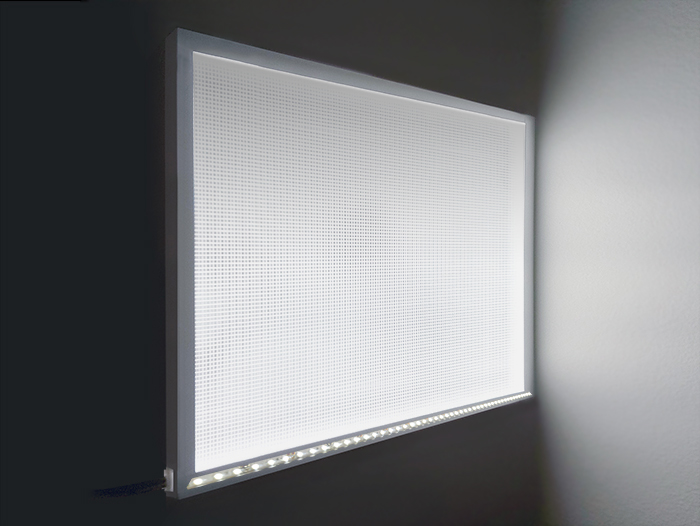

LEDs embedded along ONE edge.
To eliminate the slight drop off associated with larger panels and LEDs embedded along ONE edge we typically only recommend light panels with LEDs embedded along ONE edge for panels 14 inches (355 mm) or less in width to ensure uniform illumination.
PLEASE NOTE: LEDs shown in the image are for demonstration purposes only and are not visible on the final product.

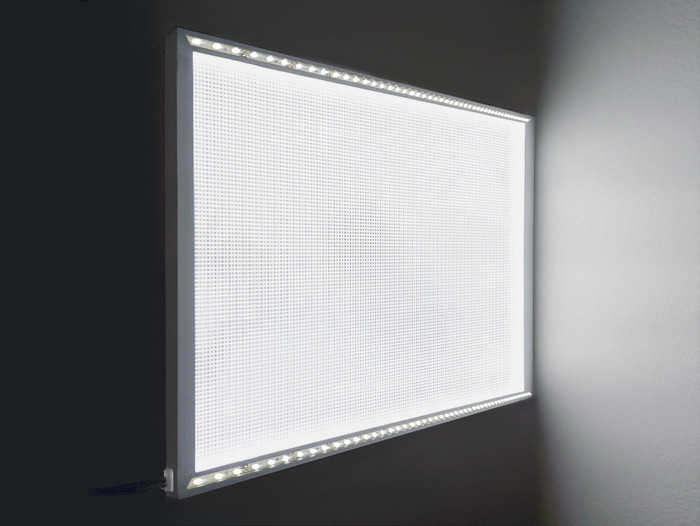

LEDs embedded along TWO edges.
For larger light panels, LEDs embedded along TWO opposing edges coupled with Elumanation's proprietary light guide distribution grid optimization algorithm specific to every Elume LED Light Panel ensures maximum uniformity with superior illumination levels.
PLEASE NOTE: LEDs shown in the image are for demonstration purposes only and are not visible on the final product.
LEDs embedded along ALL FOUR edges.
For larger panels square or near square in shape, LEDs embedded along ALL FOUR edges coupled with our proprietary light guide distribution grid optimization algorithm specific to every Elume LED light panel ensures maximum uniformity with superior illumination levels.
PLEASE NOTE: LEDs shown in the image are for demonstration purposes only and are not visible on the final product.
Elume LED Light Panel - Non-Framed Models vs Framed Models
Both our non-framed and our framed LED Light Panels have various benefits to suit your application's specific requirements.
NON-FRAMED ELUME LED LIGHT PANELS
- • Minimal butt lines
- • Organic / odd shapes

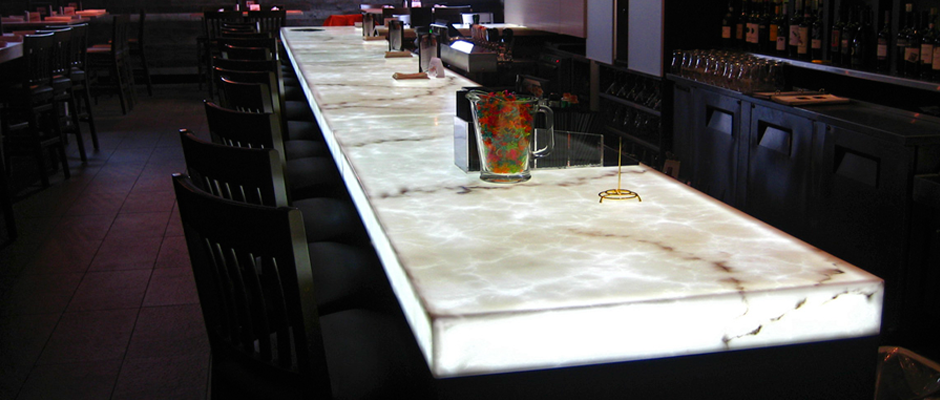

- • Zero air space required (Ideal for backlit stone bars/countertops)
- • Water resistant (Additional option)
FRAMED ELUME LED LIGHT PANELS
- • Additional structural rigidity and mounting options
- • Light weight (Lighter than our non-framed models)
- • Enhanced thermal management
- • More economical (Compared to non-framed models)
Elume LED Light Panels - Standard Specifications For All Models
Data sheets are available for each individual model however we advise contacting us to discuss your project to ensure the ideal model is utilized for your application.
| ELUME LED PANELS: | STANDARD SPECIFICATIONS |
|---|---|
| Output Level Options: Max-High Output [MH] : Extreme Output [E] : RGB Output [RGB ]: |
17 W/M [5.18 W/Ft] [STANDARD] 25 W/M [7.62 W/Ft] *Special order only 14 W/M [4.26 W/Ft] |
| Output Source : | LEDS Embedded Along 1,2,3 Or All 4 Edges |
| Output Colour Options : *Custom Kelvins Available |
Daylight White [DW 5800K] Neutral White [NW 4100K] Warm White [WW 3000K] RGB [DMX Addressable Colours & Effects] Static Colours [Red, Green, Blue, Etc.] |
| Dimming Options : *More Info Available |
0~10V | PWM | DALI | Wireless Remote *Requires Additional Inline Dimming Module |
| Operating Lifespan [L70] : | Up To 70,000 Hours |
| Warranty : | 3 Years |
| Environment : | Dry Locations *Exterior Available On Model : ELP-12 |
| Operating Temperature : | -30°C [-22°F] ~ +40°C [+104°F] |
| Operating Voltage : | 24VDC |
| Electrical Arrangement : | *Wiring schematics provided per project |
| Input Connector Type : | 22" [558mm] Plug & Play Female Barrel 18AWG 2 Conductor Lead |
| Power Supply Options : *More Info Available |
Hardwired or Plug & Play *Based On Load Requirements & Project |
| Electrical Safety Certification : | UL Certified |
| * Contact us for more info | |
| SPECIFIC MODELS: |
|---|
| MODEL : ELP-6
[Non-Framed] Max Dimensions: 96" x 20" | Thickness: 0.28" *Special order only - Contact us DOWNLOAD ELP-6 CUT SHEET |
| MODEL : ELP-8
[Non-Framed] Max Dimensions: 100" x 50" | Thickness: 0.35" *Standard Non-Framed Model DOWNLOAD ELP-8 CUT SHEET |
| MODEL : ELP-12
[Non-Framed] Max Dimensions: 100" x 50" | Thickness: 0.51" *Non-Framed Exterior Or RGB - Contact us DOWNLOAD ELP-10 CUT SHEET |
| MODEL : ELP-SF37
[Framed] Max Dimensions: 35" x 35" | Thickness: 0.35" *Special order only - Contact us DOWNLOAD ELP-SF37 CUT SHEET |
| MODEL : ELP-SF32
[Framed] Max Dimensions: 50" x 100" | Thickness: 0.39" *Standard Framed Model DOWNLOAD ELP-SF32 CUT SHEET |
| MODEL : ELP-SF20
[Framed/Diffused] Max Dimensions: 30" x 40" | Thickness: 0.6" *Diffused Framed Model DOWNLOAD ELP-SF20 CUT SHEET |
| MODEL : ELP-SF30
[Framed/Diffused] Max Dimensions: 30" x 96" | Thickness: 1.125" *Diffused w/ Air Space Framed Model DOWNLOAD ELP-SF30 CUT SHEET |
Elume LED Light Panel - Specification Guide
Our design associates ensure that each project utilizes the ideal model specific to your application's requirements. Please contact us before specifying.
